GAS Omega 1000hp Intercooler Kit, B9 S4/S5

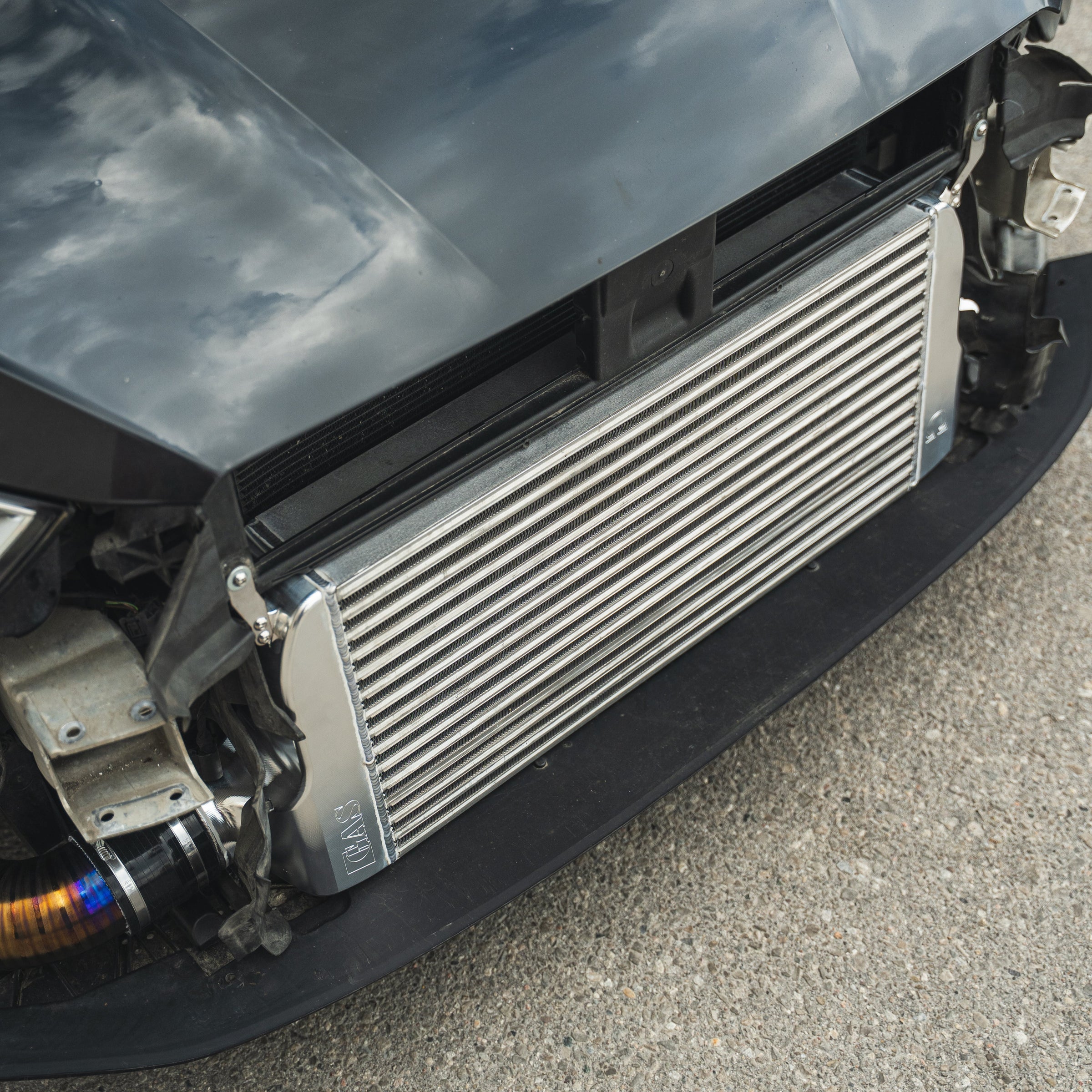

Our intercooler upgrade for the EA839 3.0T engine utilizes a 1000hp core that has earned its fame on some of the fastest street cars on the planet. We started with an excellent base and built a direct-fit unit that delivers again and again, no matter the power level!

Maximum cooling

We used 3D modeling & printing to exploit all of the available space in the front end and designed our end tanks around the widest core that could possibly fit within the OEM constraints. This means that hot charge air spends longer in our core than in other options, maximizing the cooling effect.

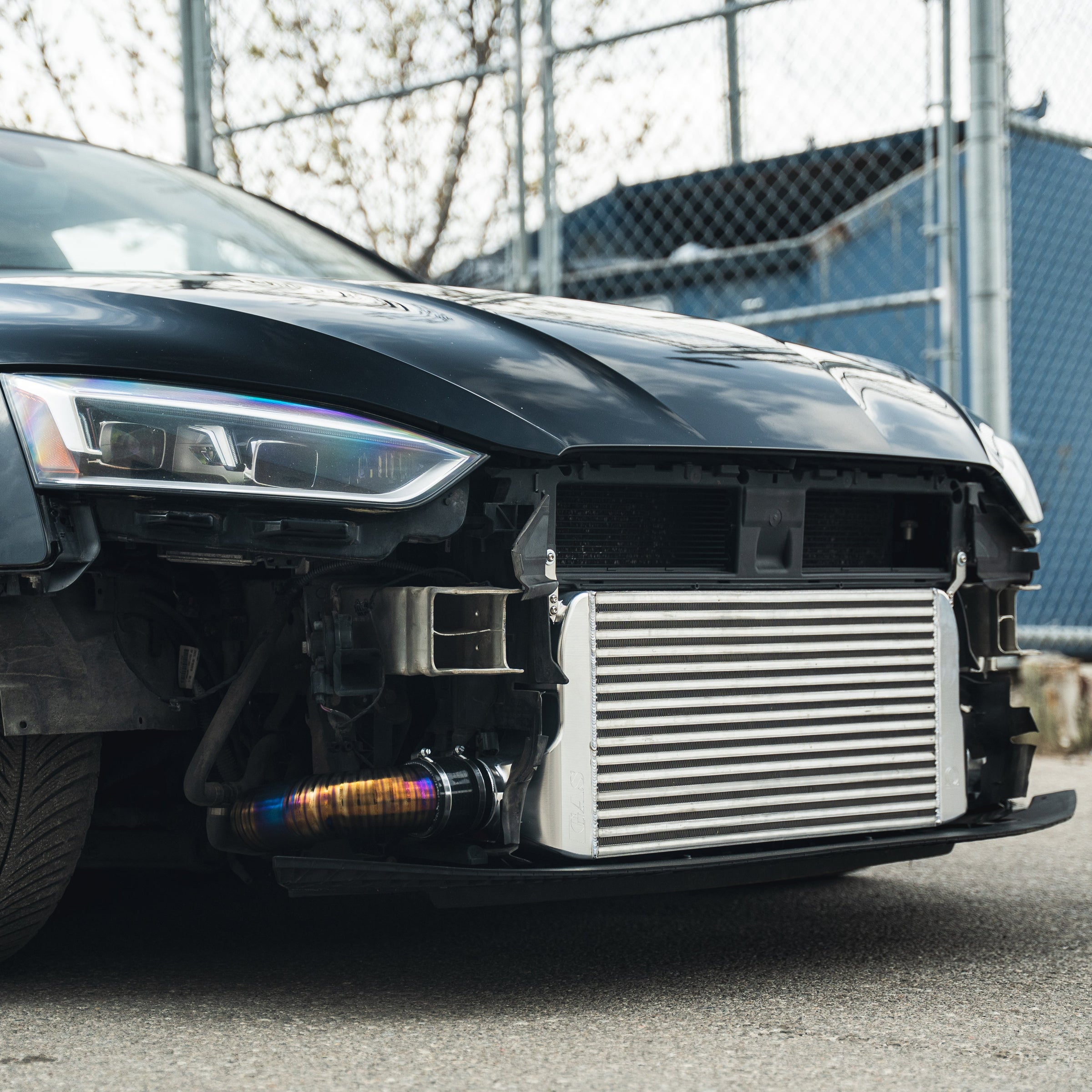

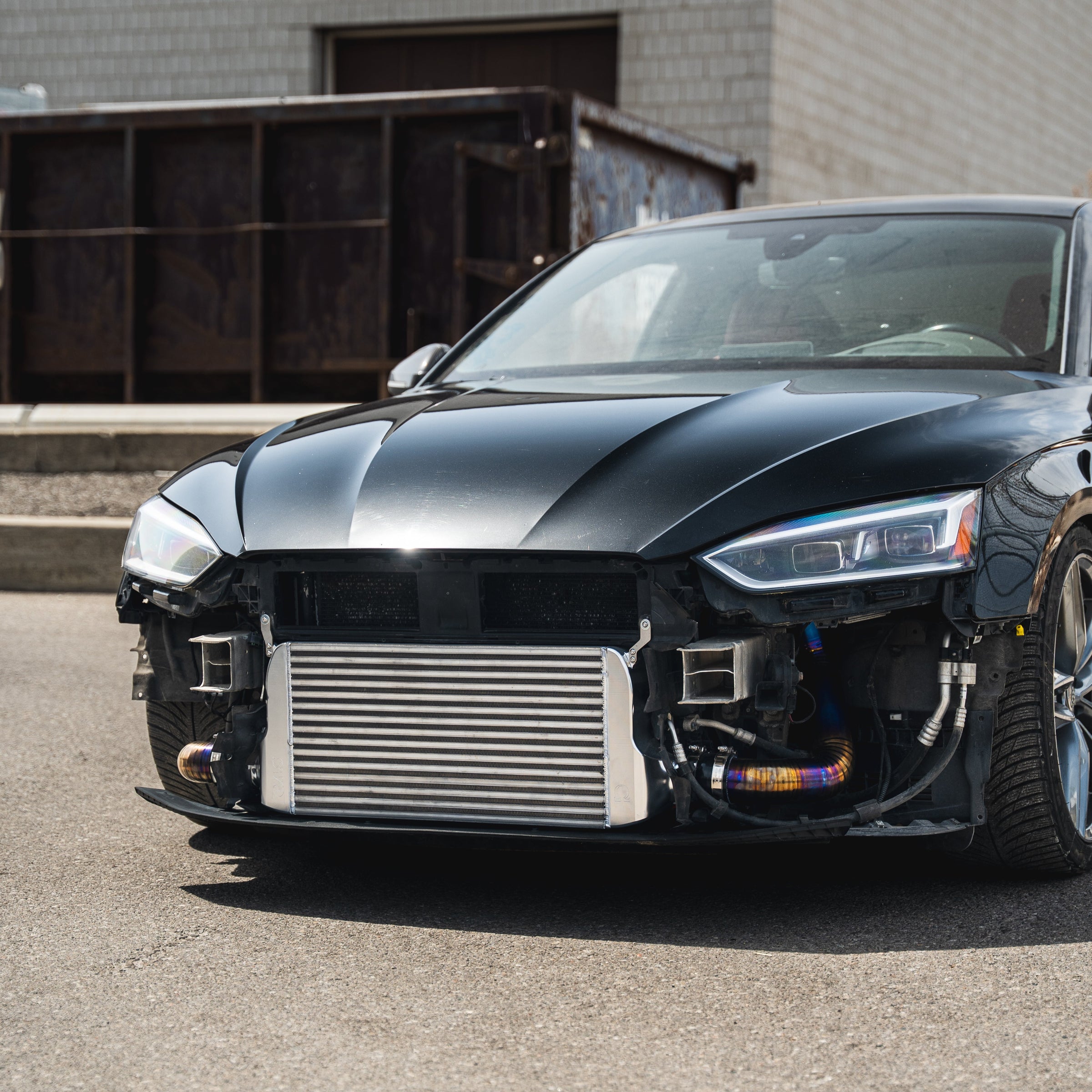

No cutting - a true bolt-on solution!

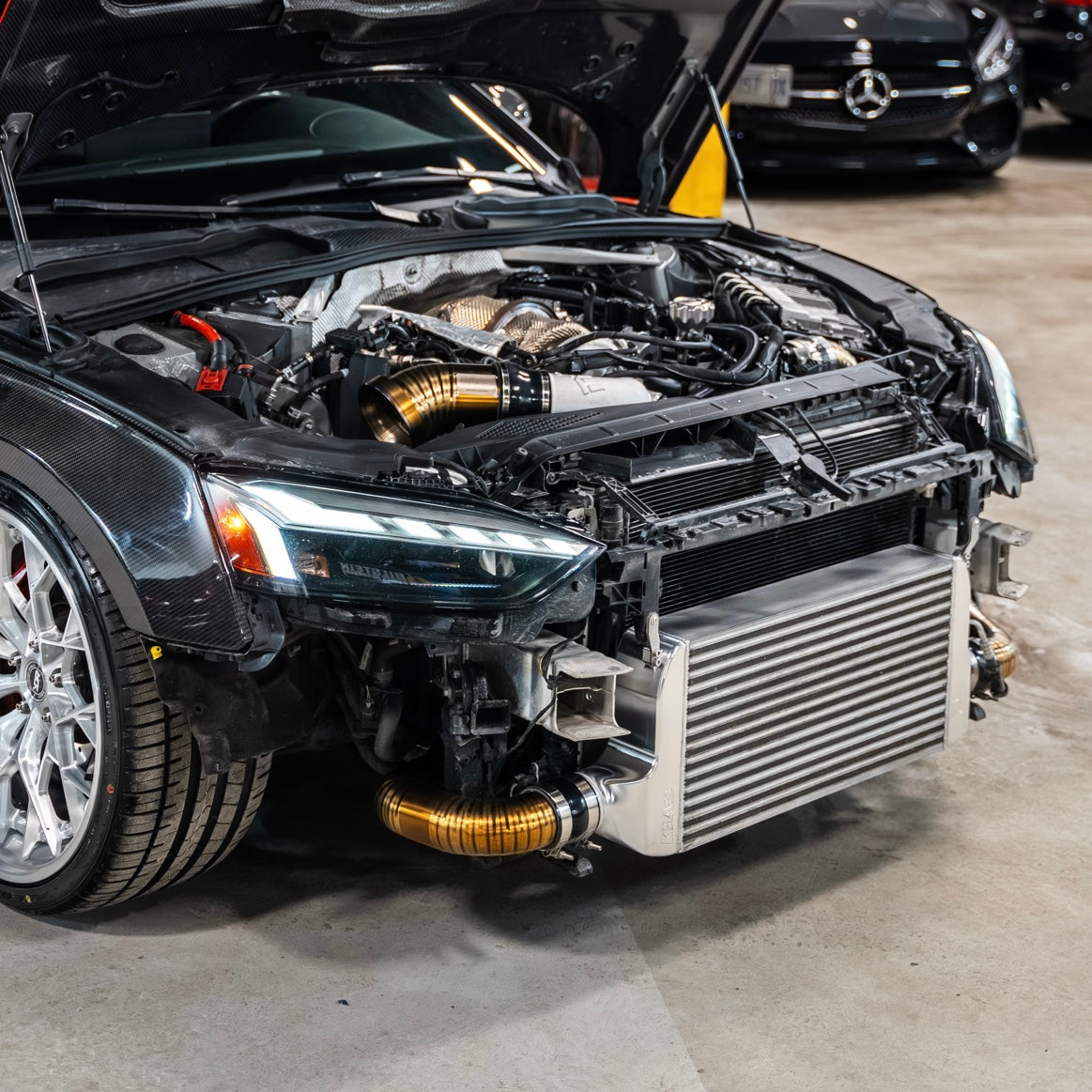

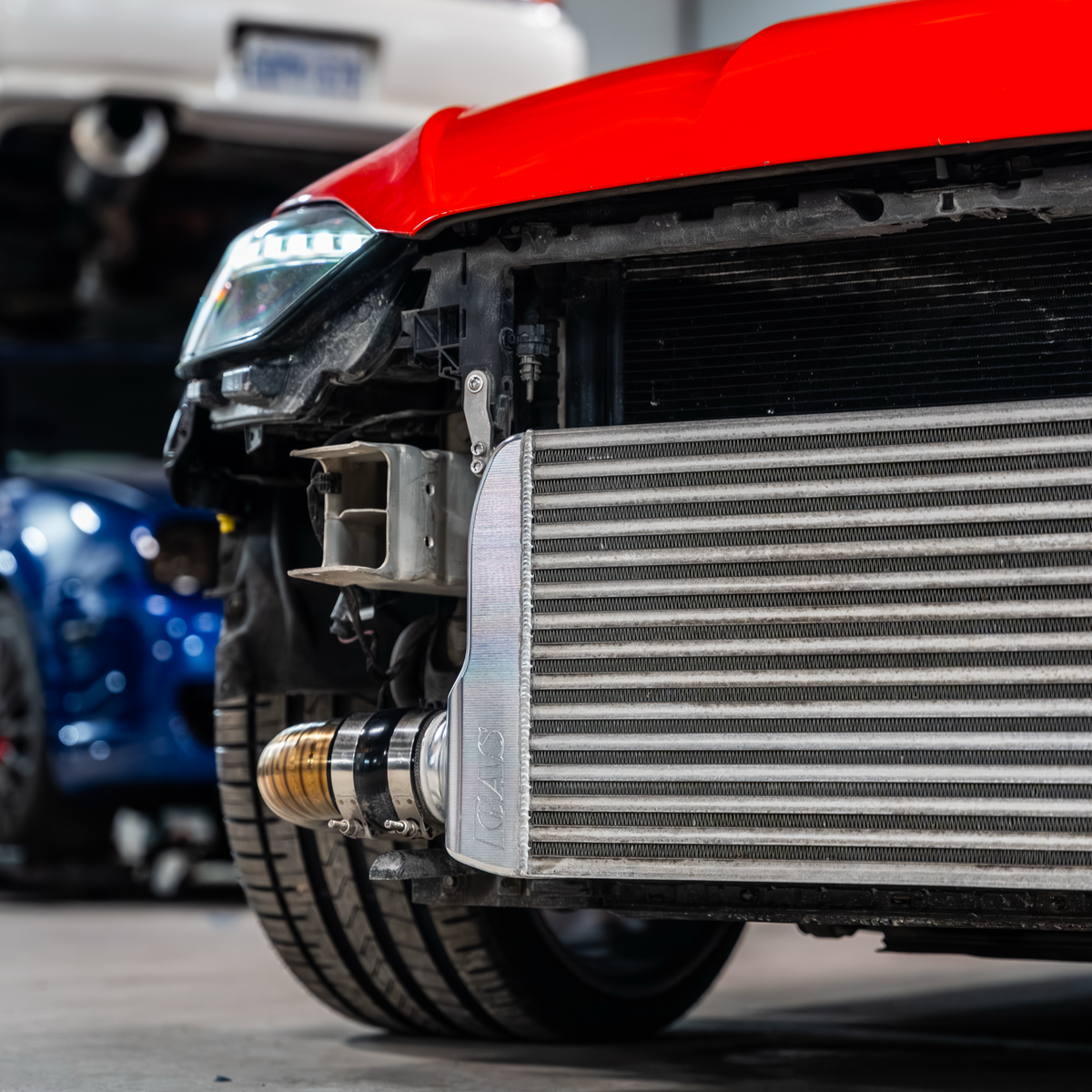

While other options require you to cut the core support to make room for taller cores, we analyzed the front end to exhaustion to deliver a solution that is truly bolt-on. No cutting, no trimming, just pure performance. Even within the constraints of the stock core support, the end result provides over 1000hp of flow with minimal pressure drop.

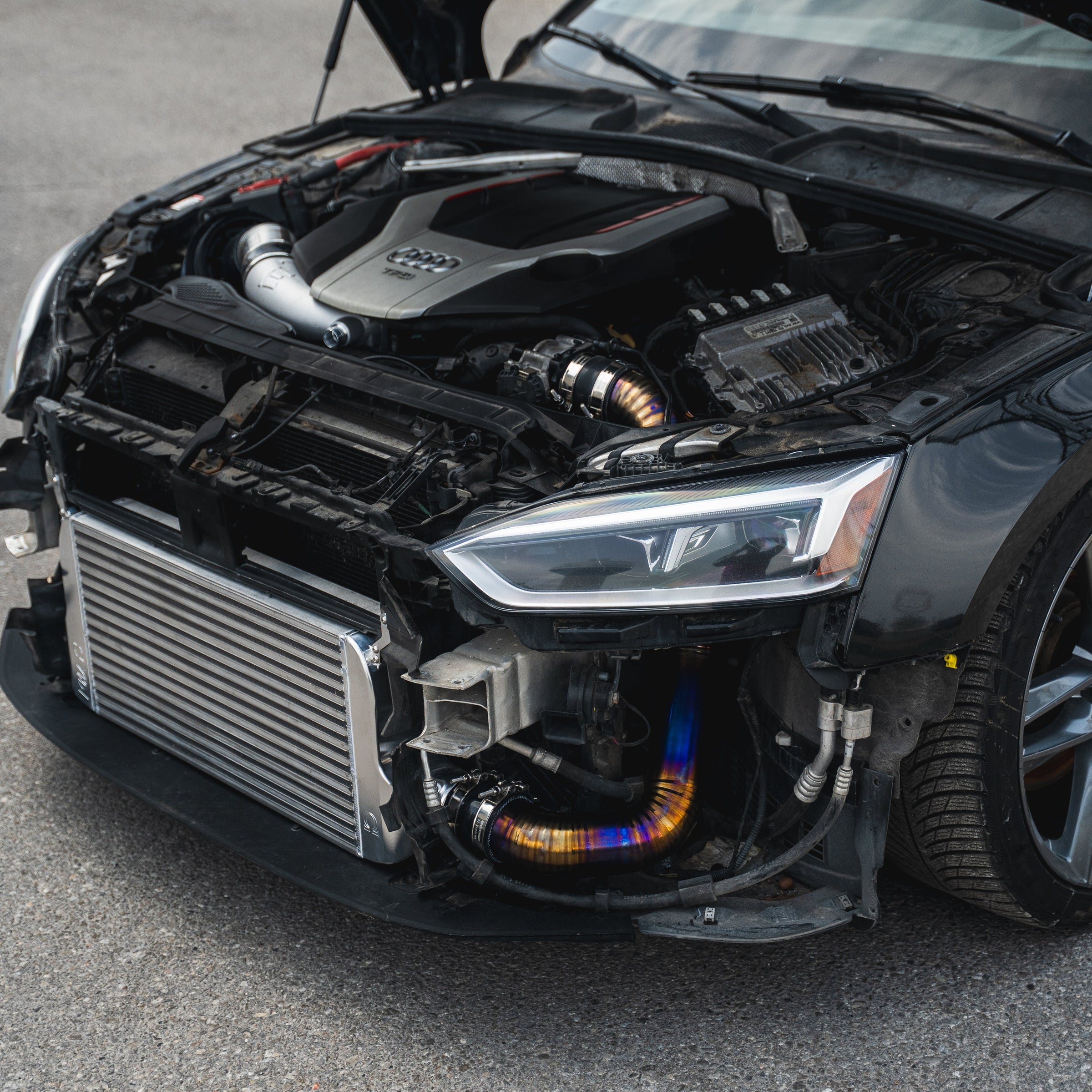

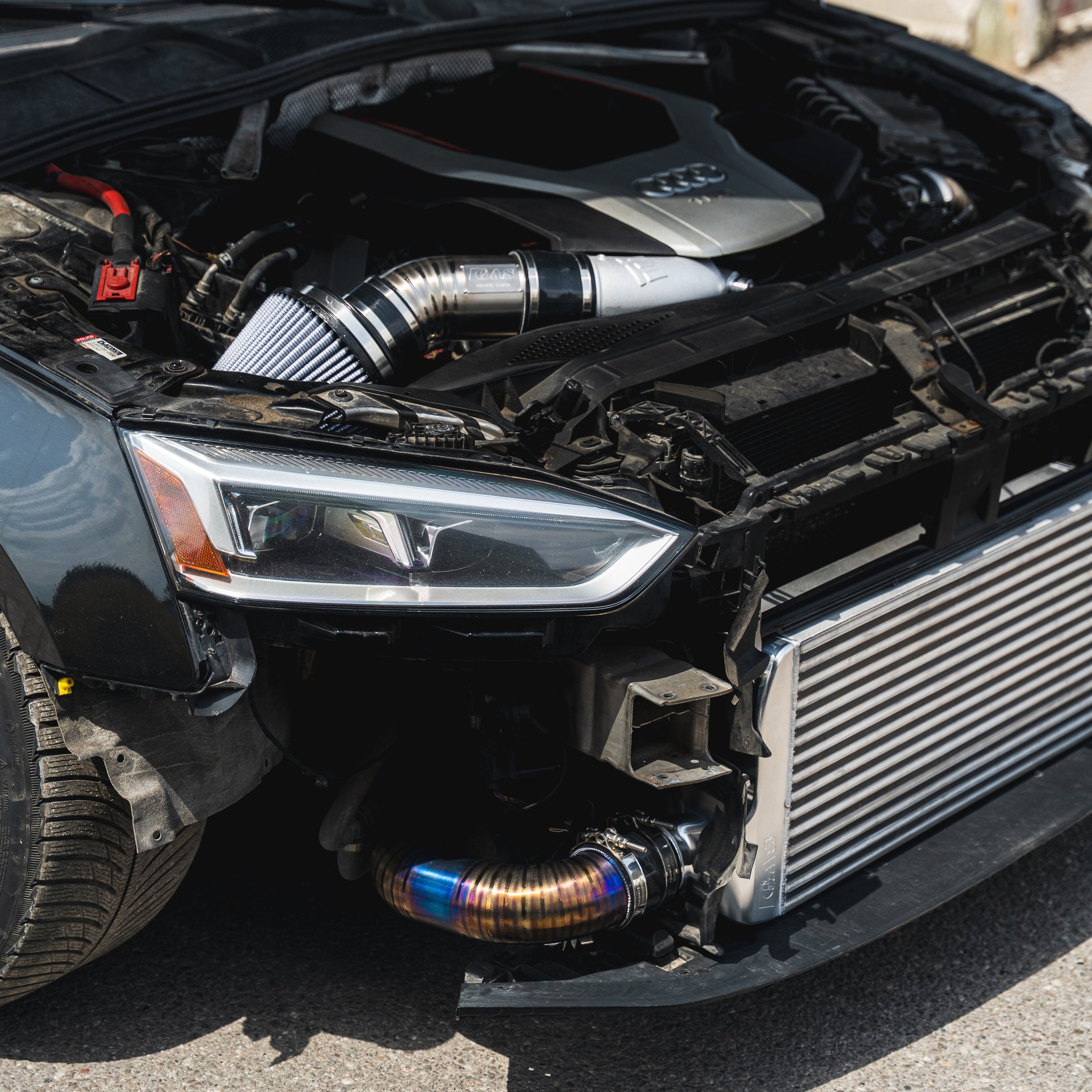

Charge pipes that deliver

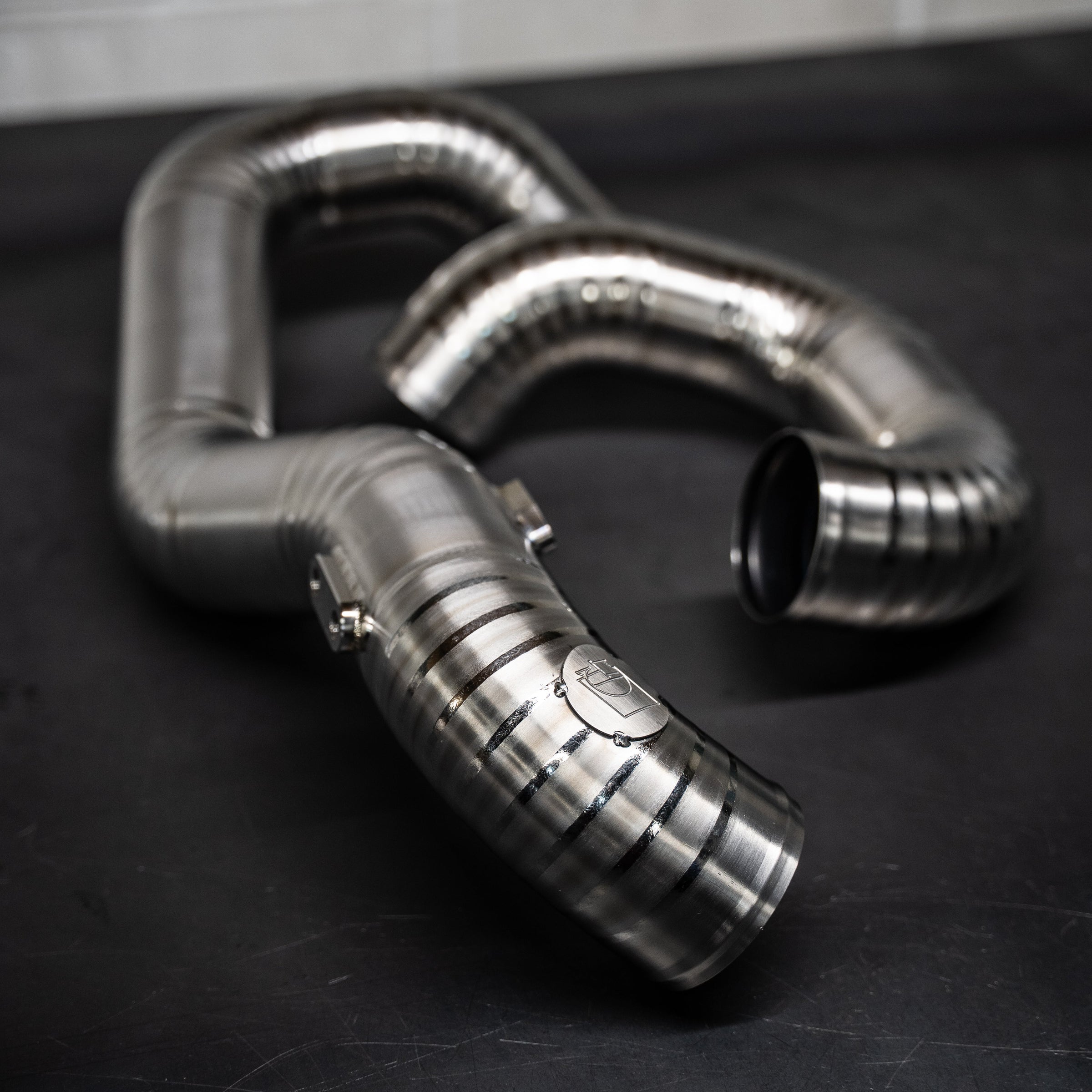

This kit includes our 76mm (3.0") titanium charge pipe set. These beefy, lightweight charge pipes replace your failure-prone stock plastic and rubber units to keep your boost where it should be - inside the engine.  These pipes will outflow any turbo you can throw at them, including every currently available full-frame option!

Features:

• 3.0" (76mm) inlet/outlet for maximum flow potential

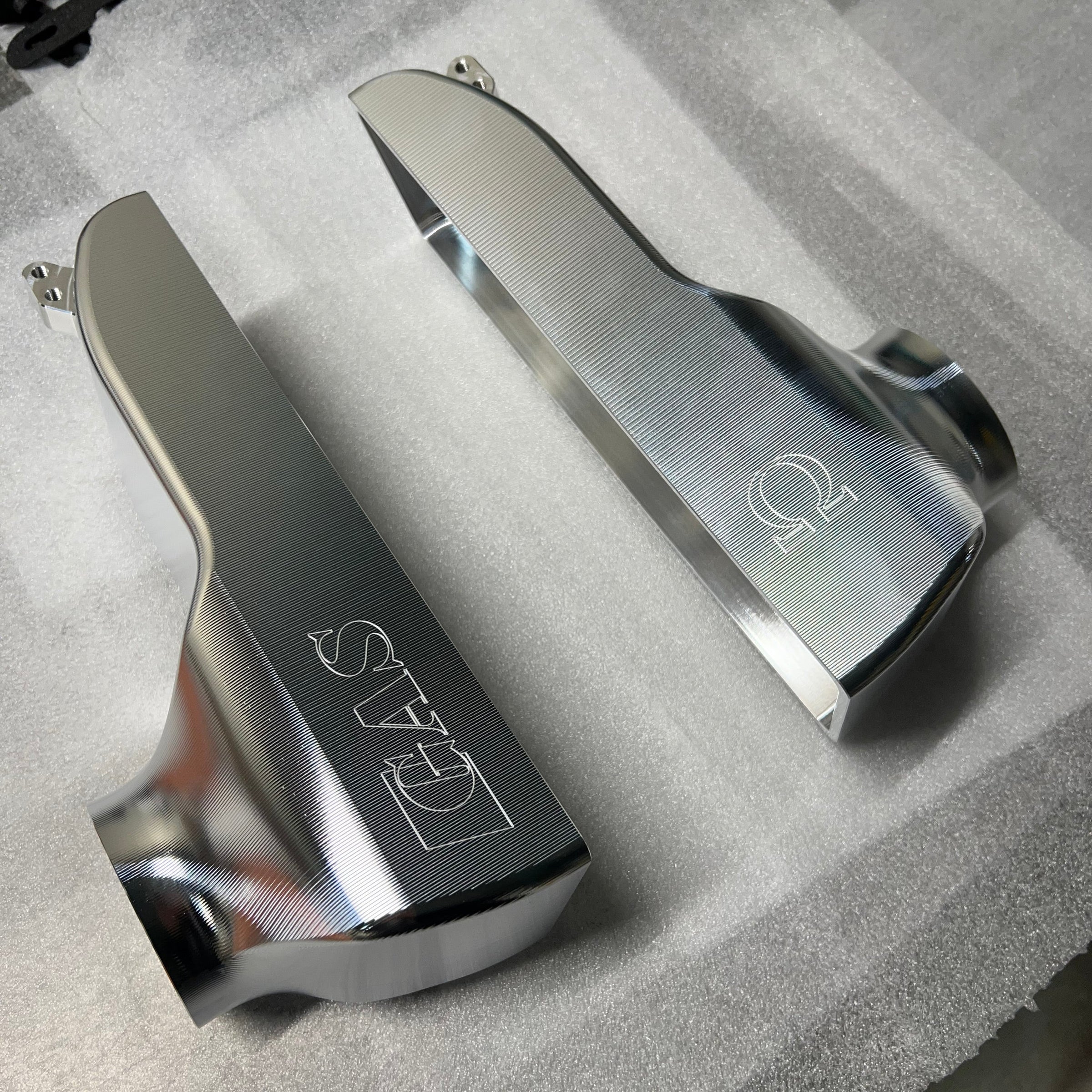

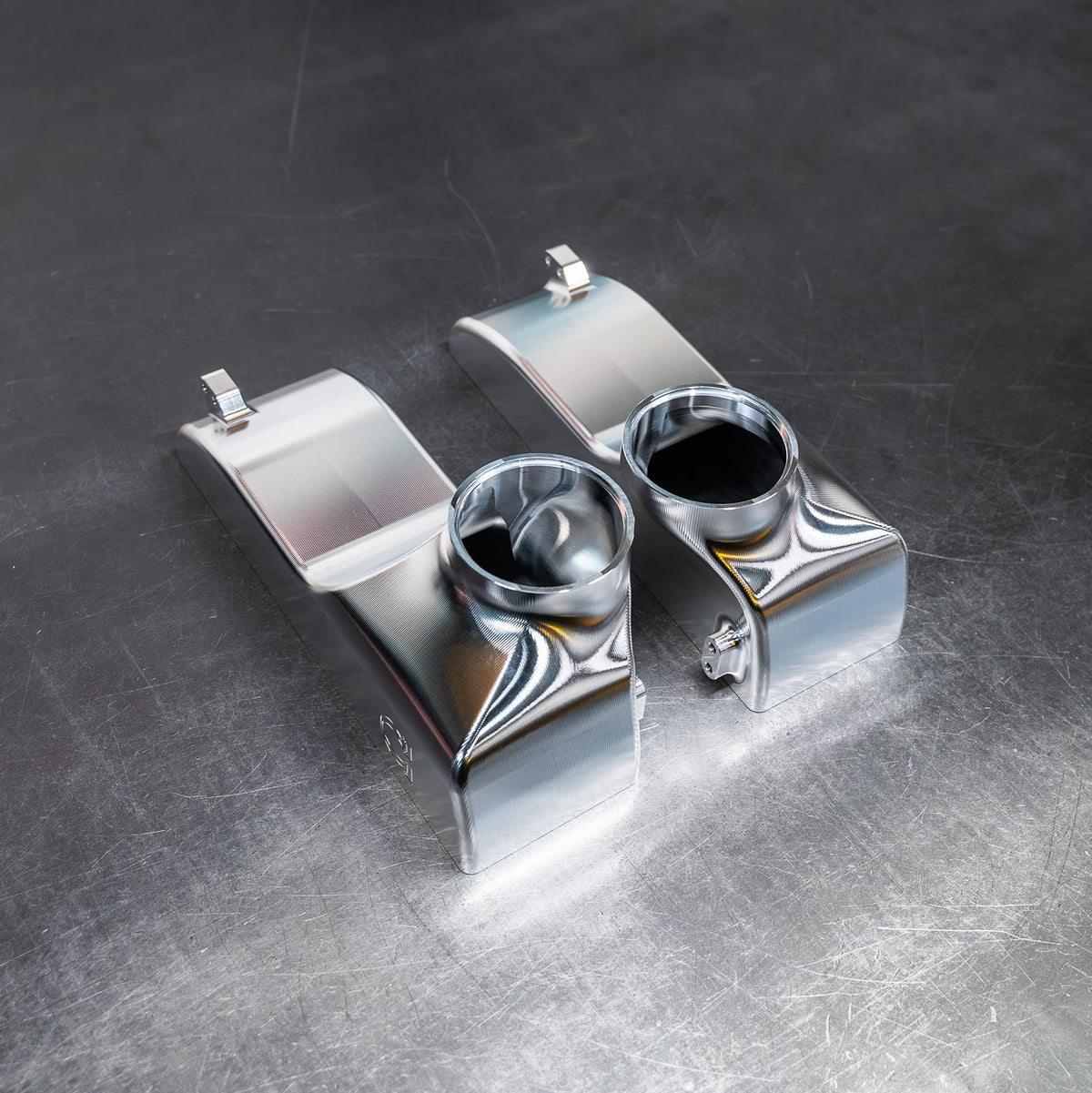

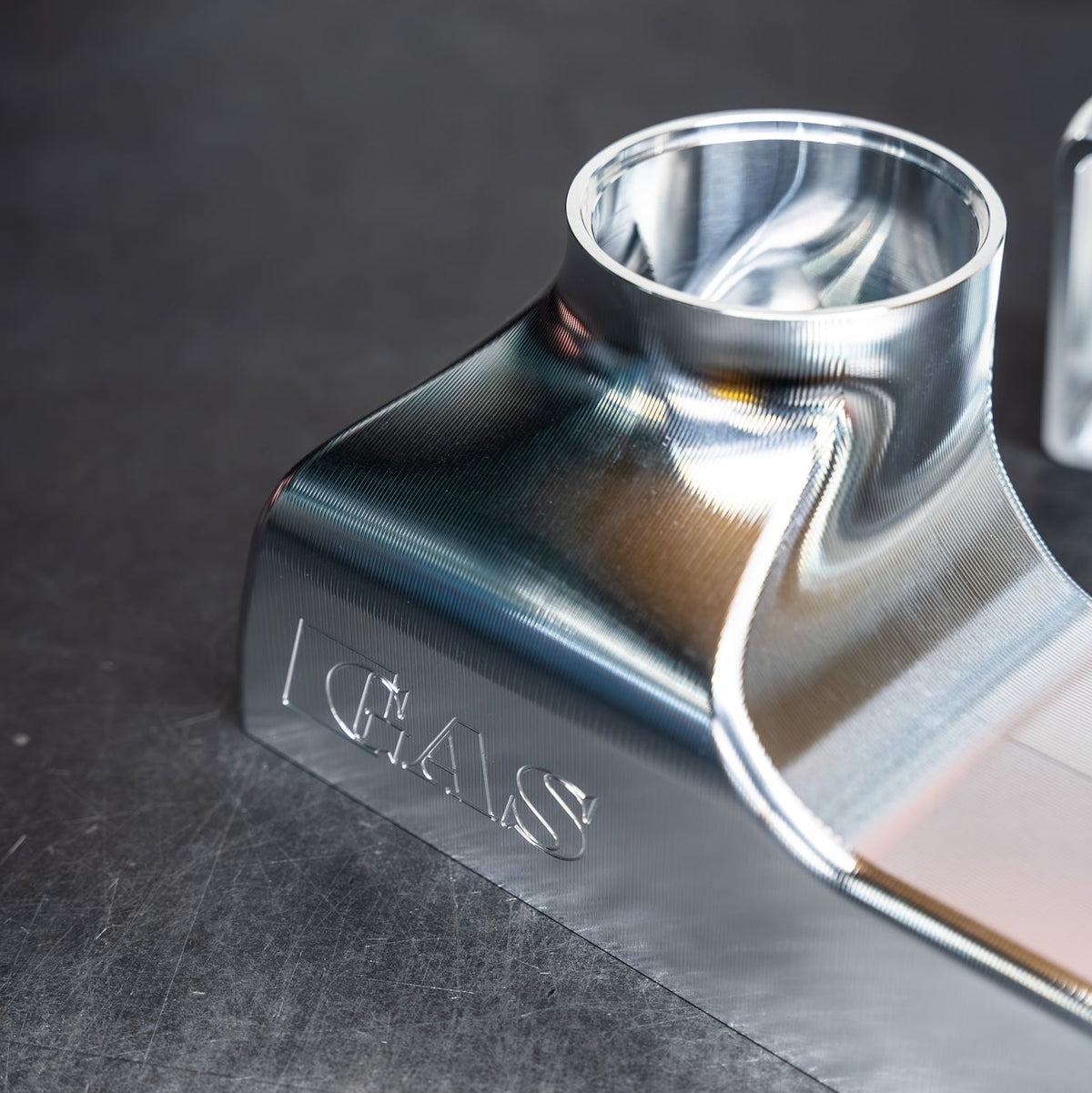

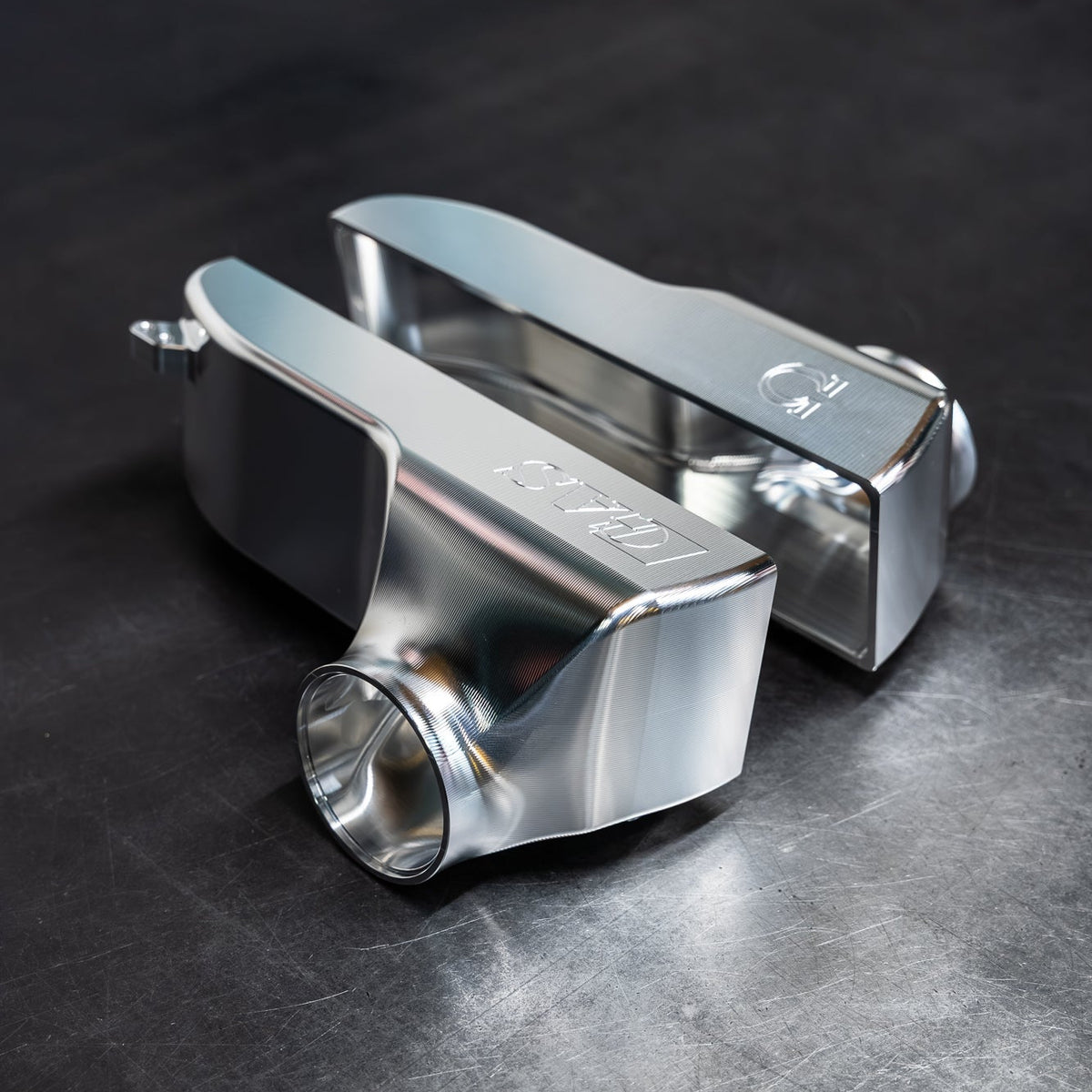

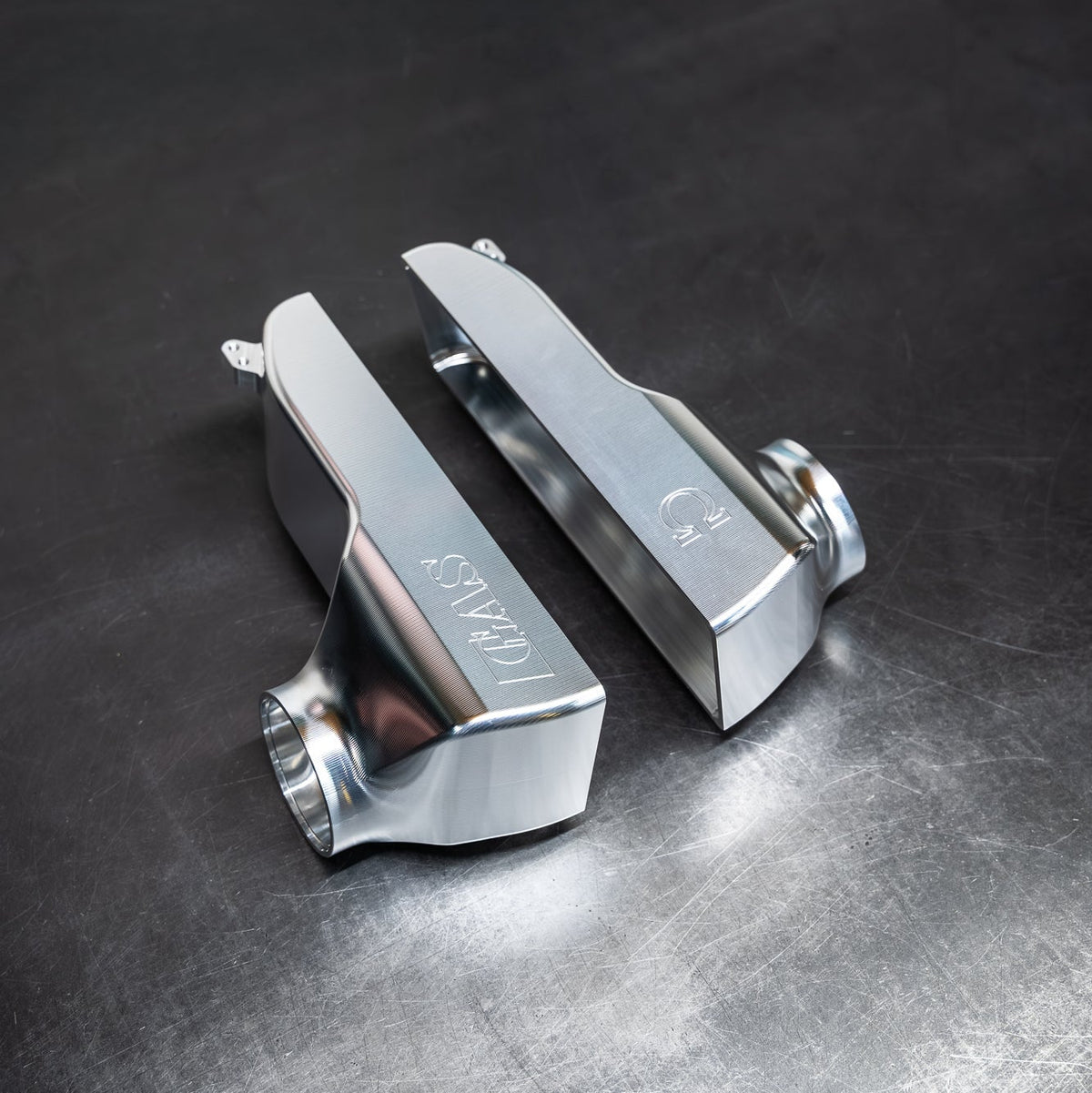

• CAD-engineered billet end tanks for minimal pressure drop
• Machined locally and welded in-house by our skilled fabricators
• Direct bolt-on with no cutting/trimming of the core support

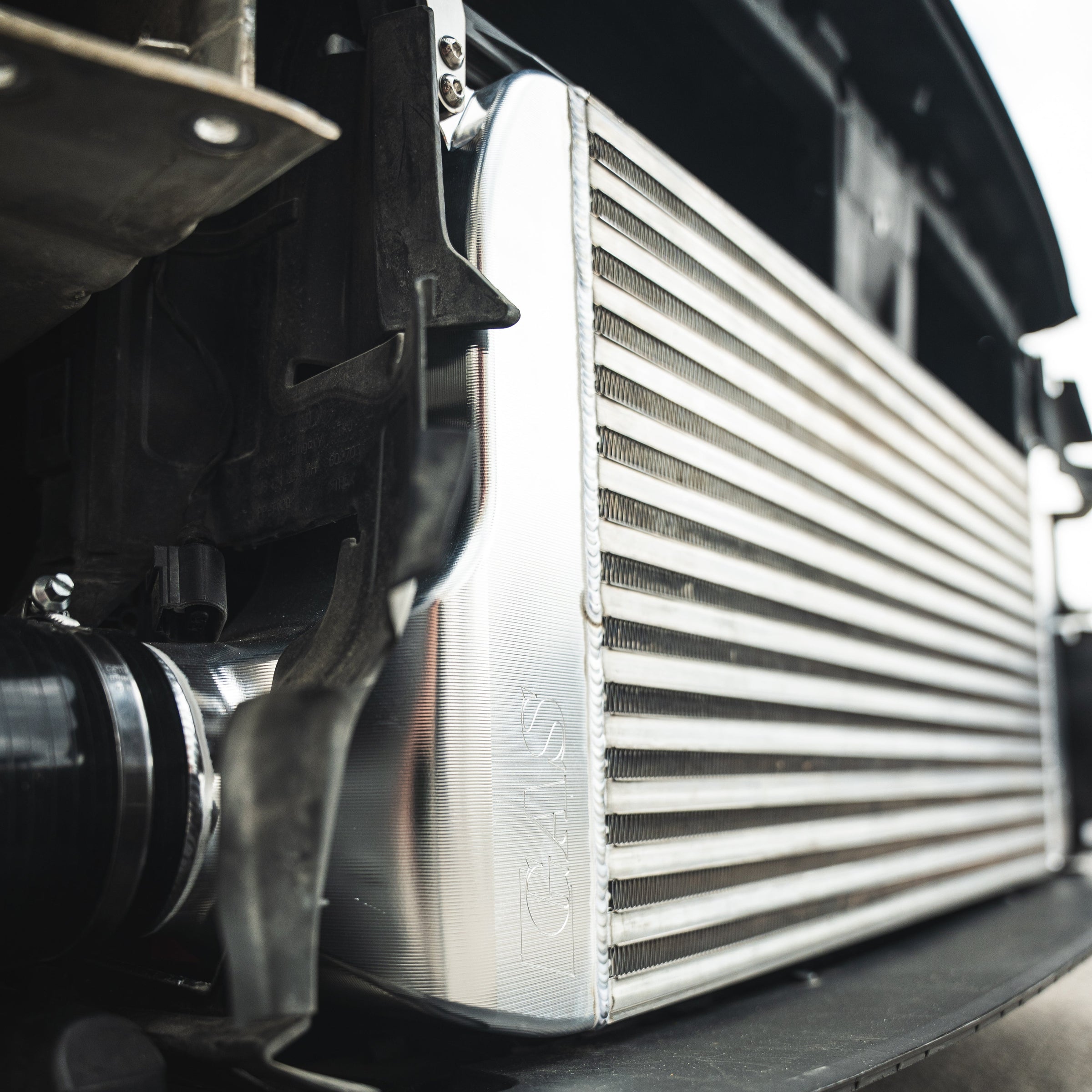

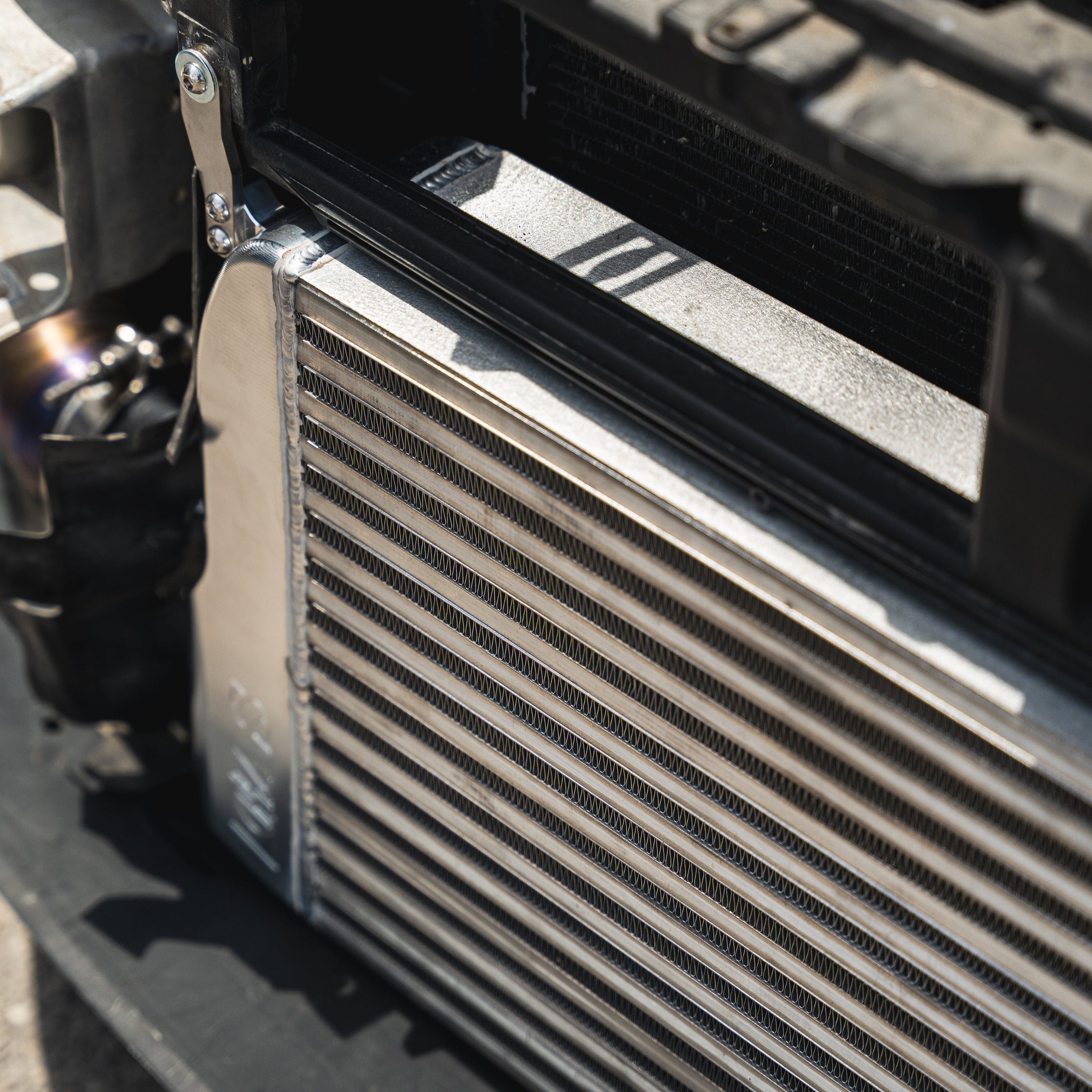

• High efficiency bar and plate construction
• Rated over 1000bhp, making this the last intercooler you'll have to buy
• Tested & proven on our Mustang AWD dyno
• Lightweight titanium charge pipes are extremely resistant to corrosion and won't crack, tear or fail like stock plastic/rubber pipes
• Mounting flange for OEM or 4-bar charge pressure sensor
• 2x 1/8" NPT bungs for boost reference and WMI/nitrous, mounted after the boost sensor to ensure no sensor fouling
• 4-ply chemical, oil, and coolant resistant silicone couplers rated to 10bar (145psi) boost pressure
• Stainless T-bolt clamps for high strength
• 76mm diameter charge pipes will flow 88lb/min at 398fps
• Proudly made in Canada from start to finish

Specifications:

• Original Intercooler Dimensions: 28.5 x 5.7 x 3.15 (511.7 cubic inches)
• GAS Omega Intercooler Dimensions: 23.7 x 12 x 3.8 (1080.7 cubic inches)
• Total surface area increase: 175% over stock
• Total core volume increase: 211% over stock

Includes:

• Omega 1000hp intercooler with billet end tanks
• Full titanium charge pipe set (purple/gold finish shown)
• Reinforced 4-ply black silicone couplers for hot and cold sides
• 8x stainless t-bolt clamps
• 2x 1/8" NPT stainless plugs
• All required brackets & hardware for installation
